Key Products
Flagship Quadruped Robots Born for the Industry

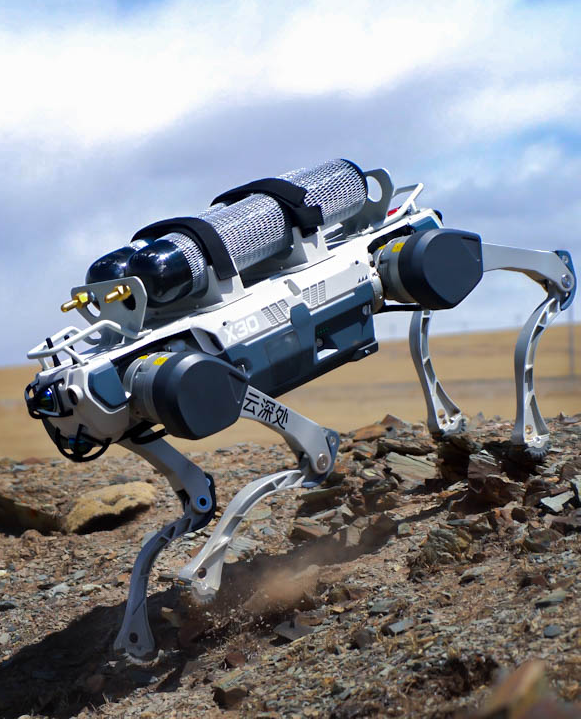

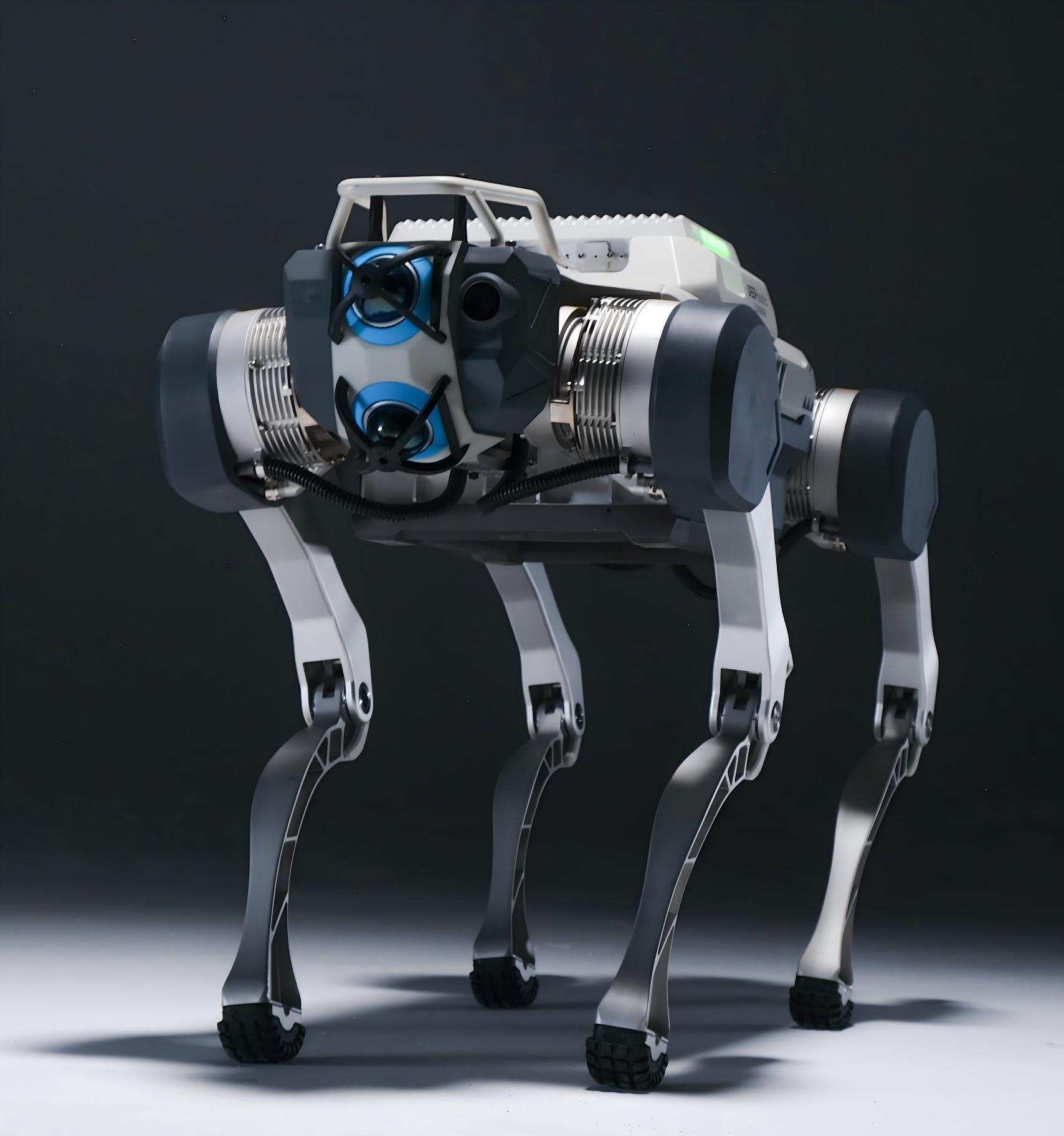

X30 - The Most Professional Industrial Quadruped Robot
IP67 protection
Climbs 45° stairs & industrial steps (20cm)
4h battery life & payload ≥20kg

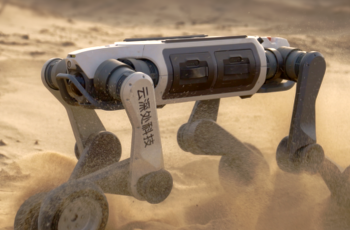

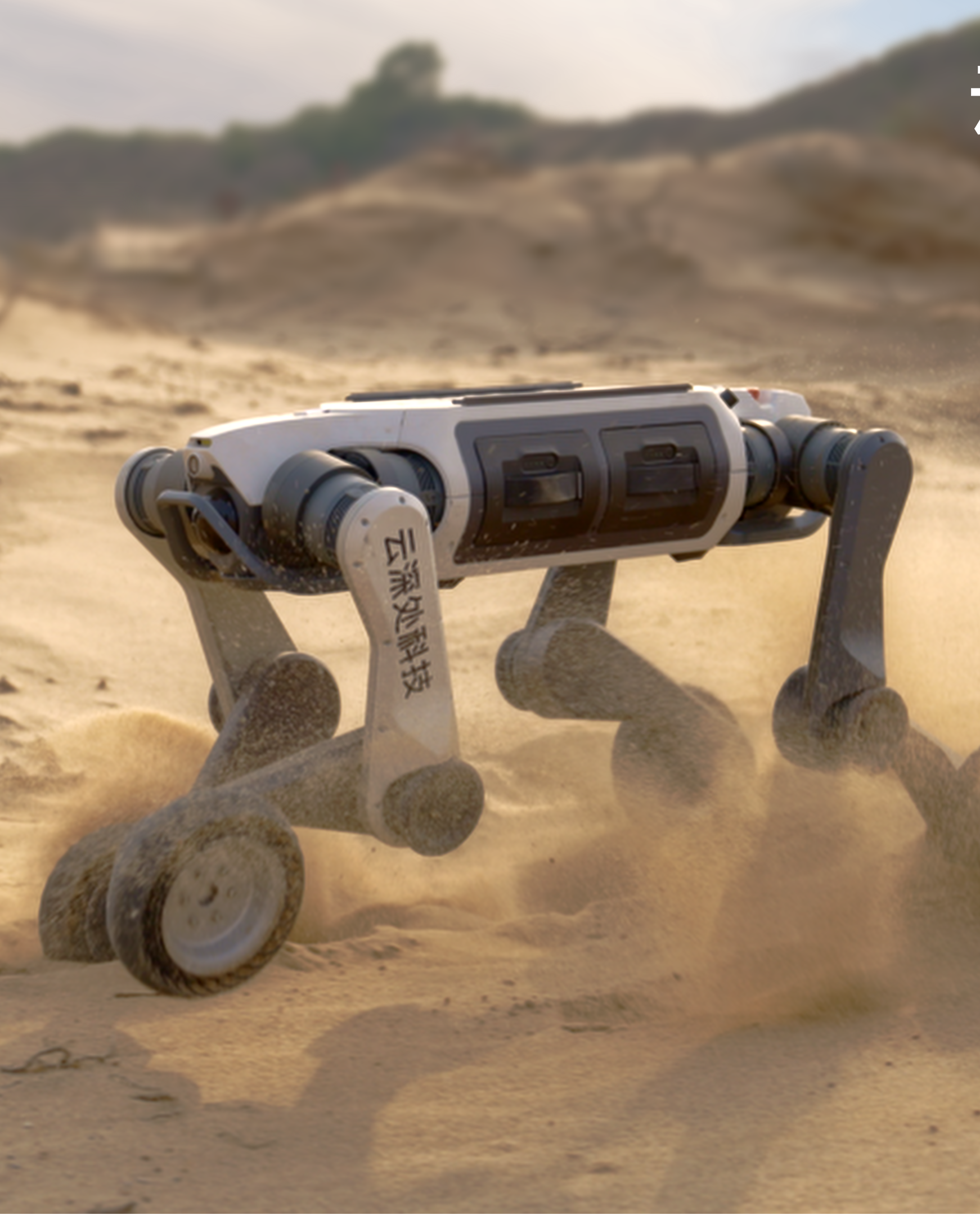

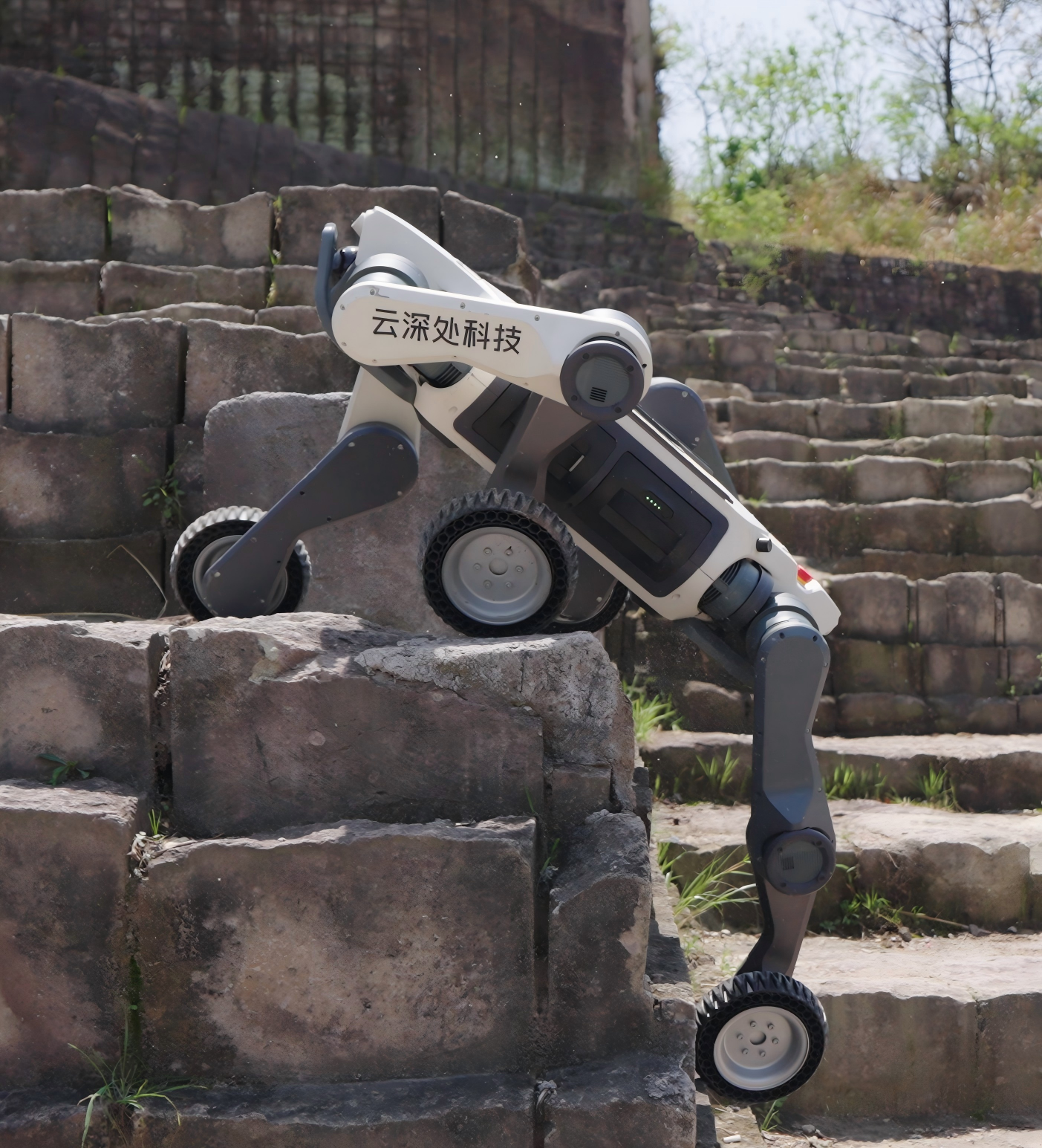

Lynx M20 - Omni-Terrain Operations | Breaking Application Boundaries
All-terrain capability
Hot-swappable battery supporty
Navigate freely through 50cm narrow passage

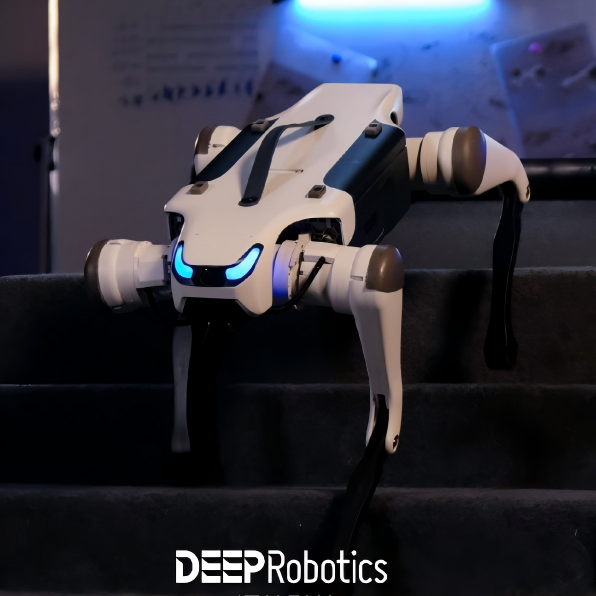

Lite 3 - Extraordinary locomotion, modify with your imagination
Support secondary development
Extraordinary locomotion
Ideal for entertainment and scientific research
Dimension
Standing size 1000*715*470(mm)
Weight 59kg (battery included)
Battery
Endurance 2.5-4h
Mileage ≥10km
Motion
Max.Speed ≥4m/s
Slope ≤45°
Step/Obstacle’s H ≥20CM
Communication
Interface USB2.0 USB3.0
Ethernet WiFi Output power supply (5V 12V 24V)
Protection
Ingress protection IP67
Temperature -20°~55°
X30 - The Most Professional Industrial Quadruped Robot
Lynx M20 - Omni-Terrain Operations | Breaking Application Boundaries
General Parameters
Standing Dimensions 820mm×430mm × 570mm
Weight (Incl. Battery) 33kg
Payload Capacity 15kg
Max. Load Capacity 50kg
Unloaded Endurance/Range 3h/15km
Loaded Endurance/Range (15kg) 2.5h/12km
Charging Time (Single Battery) 1.5h
Functional Features
Omnidirectional obstacle avoidance
Point cloud surround view Front/rear bidirectional lighting
RF image transmission
OTA upgrades External Interfaces
Electrical Ports
72V power input, Gigabit Ethernet
Environmental Adaptability
Protection Rating IP66
Operating Temperature -20℃~55℃
Mobility Performance
Lab-Tested Max. Speed 5m/s
Operating Max. Speed 2m/s
Max. Continuous Stair Height 25cm
Max. Single-Step Height 80cm
Max. Slope 45°
Dimension
Standing size 610mm*370mm*406mm
Weight (Incl. Battery) 12kg
Battery
Endurance 1.5h~2h
Mileage 5km
Motion
Walking Load 5kg
Slope 40°
Stair 18cm
Perception Functions
Front/Rear Obstacle Stop，Visual Following
Software/Hardware
Hardware Interfaces
Ethernet*2; External Power Input (24V/12V/5V)
Secondary Development
Provide models, motion control SDK and APIs, as well as perception development interfaces with sample code.
Lite 3 - Extraordinary locomotion, modify with your imagination
X30
The Most Professional Industrial Quadruped Robot.
Add Your Heading Text Here
Climbs 45° stairs & industrial steps (20cm)
4h battery life & payload ≥20kg
Add Your Heading Text Here
Climbs 45° stairs & industrial steps (20cm)
4h battery life & payload ≥20kg
Add Your Heading Text Here
Climbs 45° stairs & industrial steps (20cm)
4h battery life & payload ≥20kg
Add Your Heading Text Here
Climbs 45° stairs & industrial steps (20cm)
4h battery life & payload ≥20kg
Add Your Heading Text Here
Climbs 45° stairs & industrial steps (20cm)
4h battery life & payload ≥20kg
About Us
We believe in the power of imagination and strive to bring your dreams to life through our creative expertise and motivate approach.
We take your ideas and make them happen.
Key Advantages
Integrating cutting-edge AI, advanced control, and intelligent perception technologies
Key Applications
DEEP Robotics possesses deep expertise across multiple sectors, including energy, emergency rescue, industry, and education.

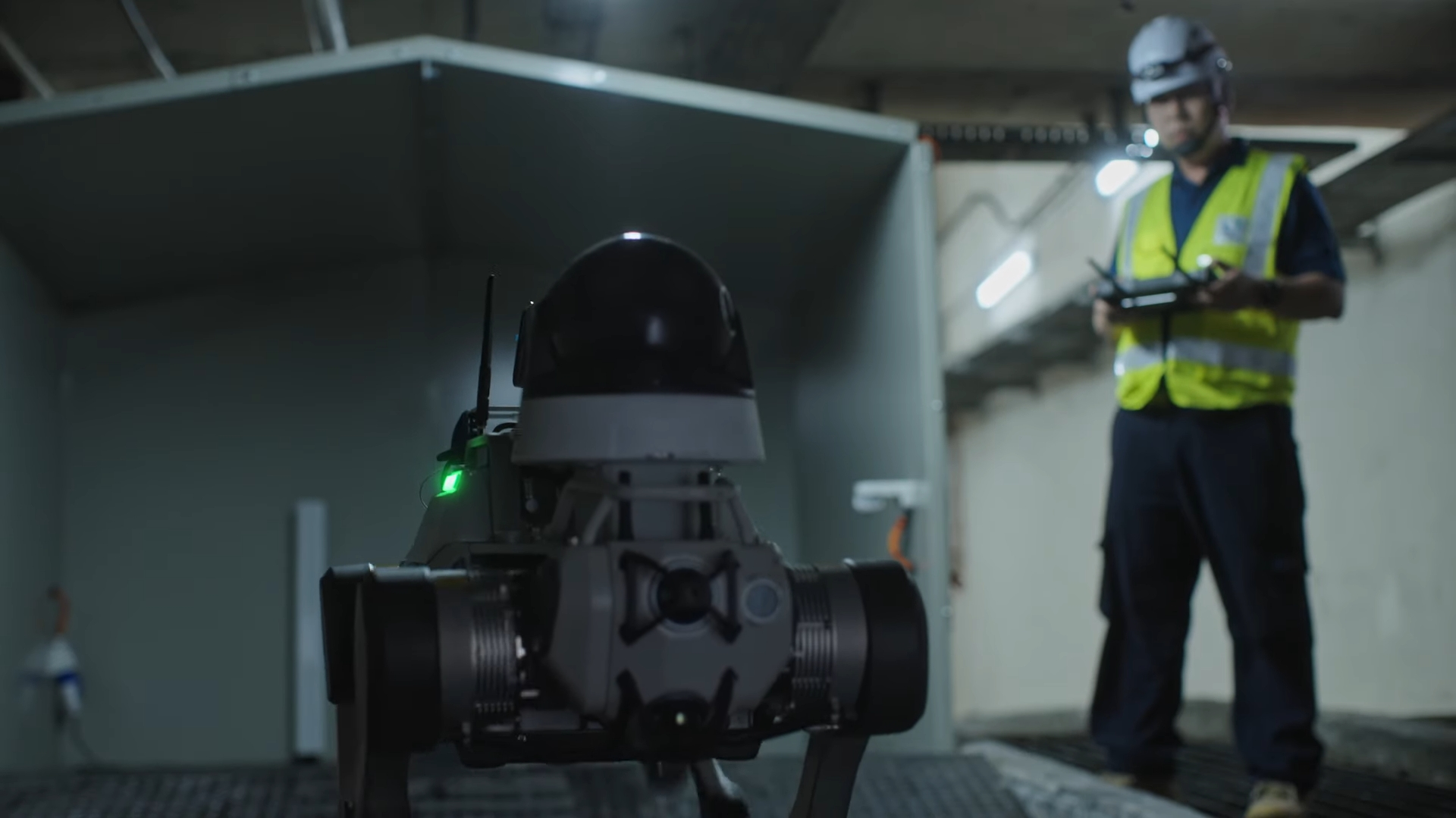

Patrol & Surveillance
Autonomous canines providing 24/7 intelligent monitoring and threat detection for enhanced security.

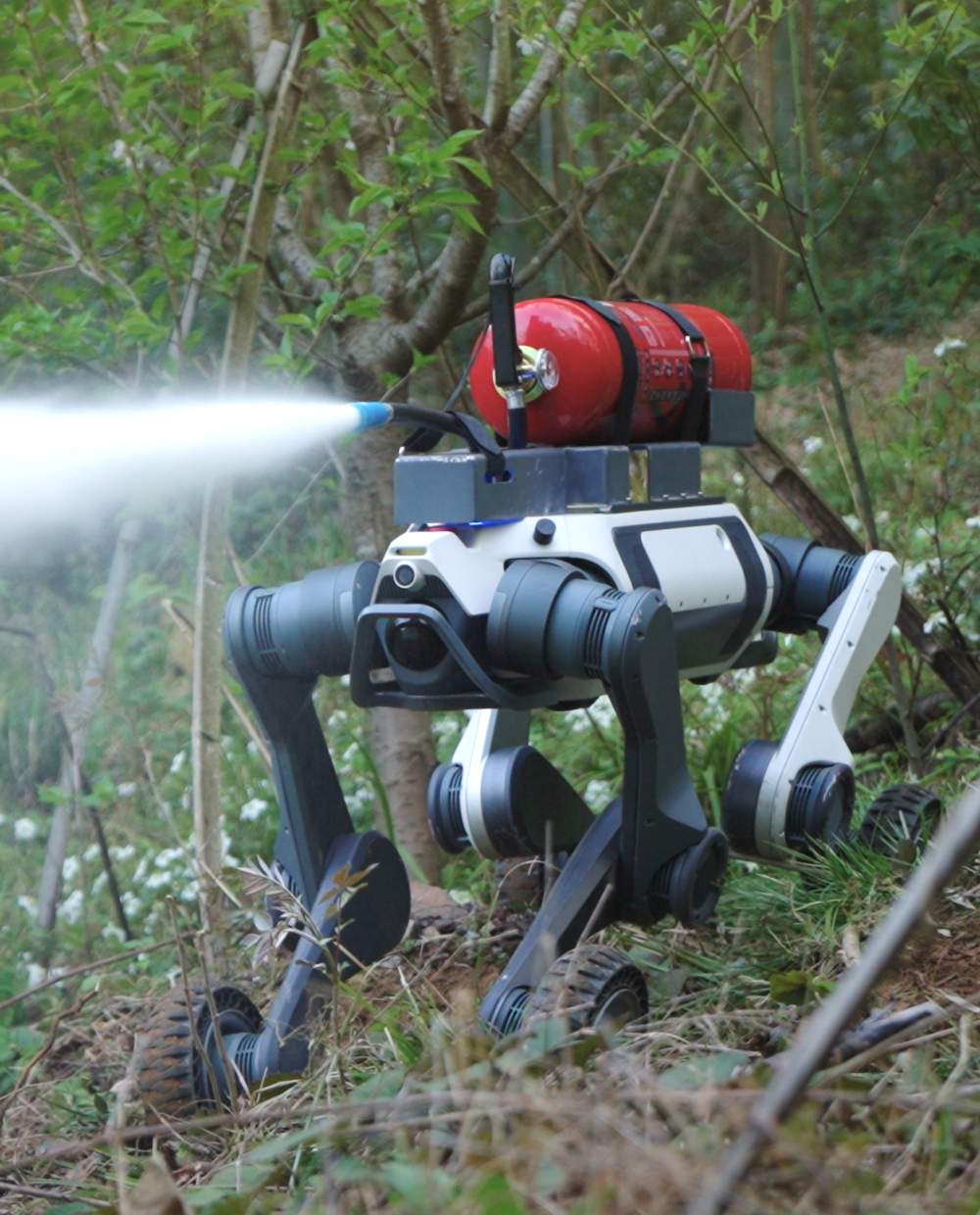

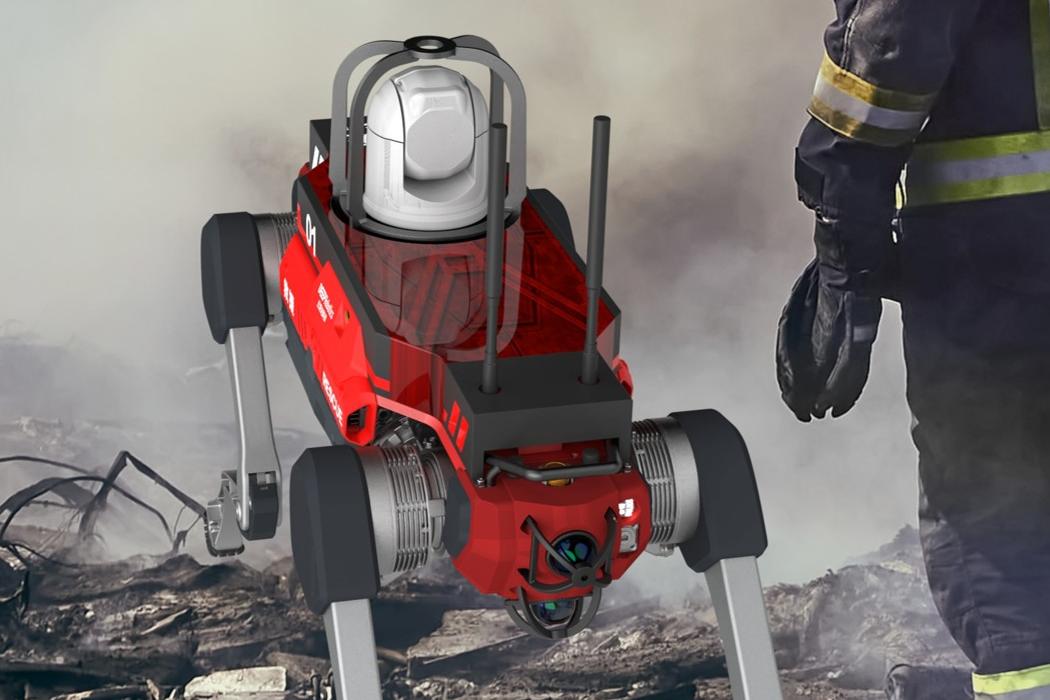

Emergency Firefighting & Rescue
Deploying into hazardous scenes for search, rescue, and data collection, protecting human responders.

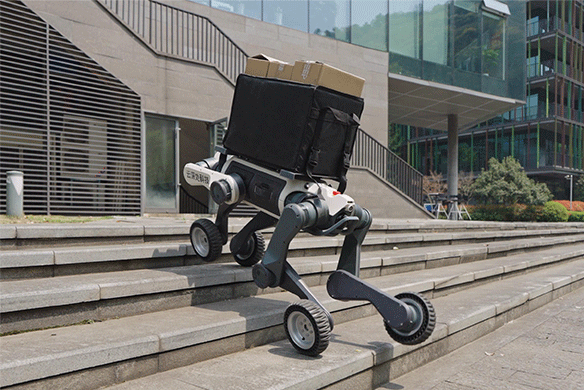

Logistics & Delivery
automating the transportation of tools and materials in indoor and outdoor environments.

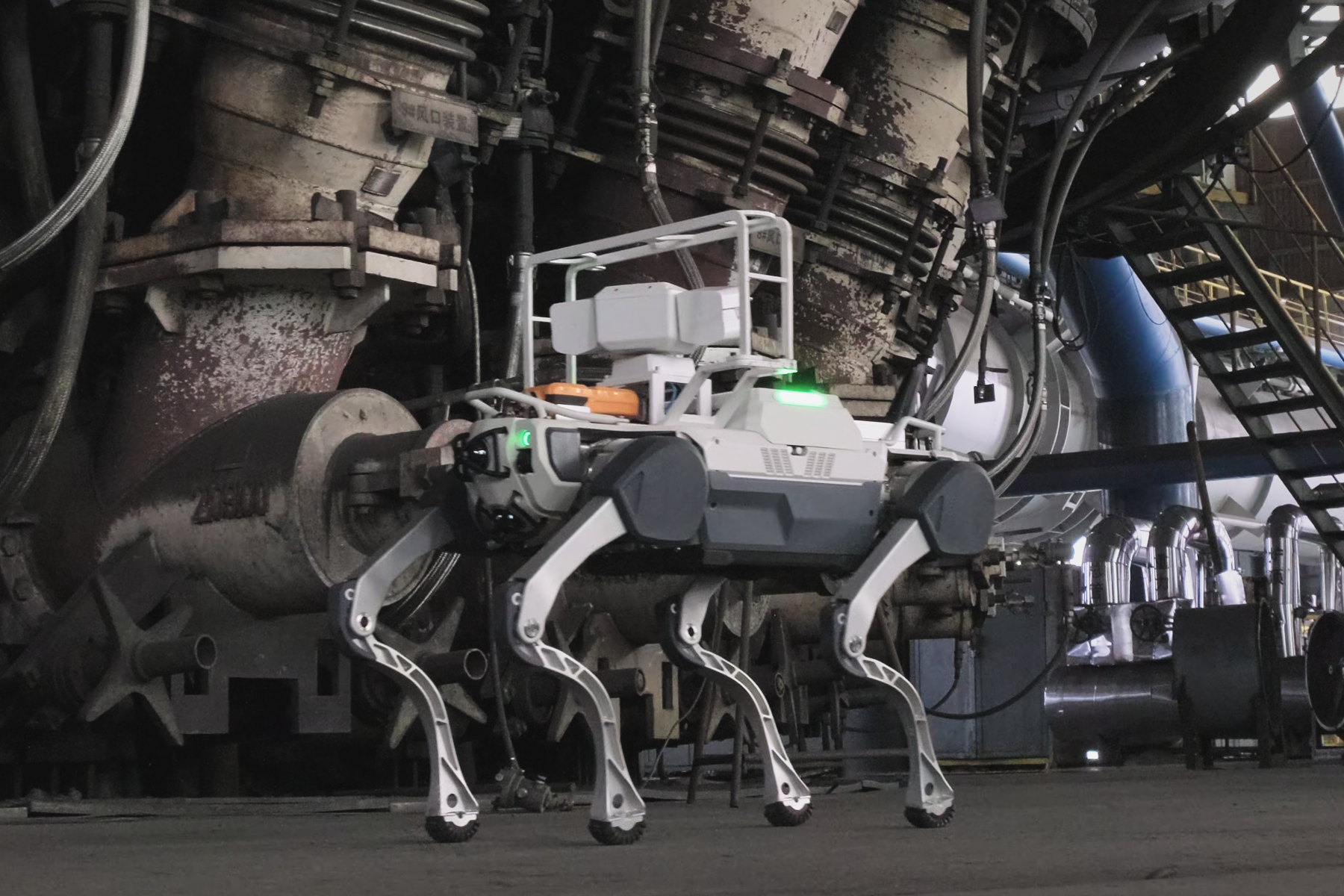

Equipment Inspection & Maintenance
Conducting autonomous inspections in industrial facilities to prevent failures and ensure safety.
Education & Scientific Research
An advanced platform for studying robotics, AI, and programming in academic settings.
Entertainment & Interactive Experience
Engaging and dynamic robotic companions for interactive entertainment and brand experiences.
